52x 5.7-300mm long focal length 1080P HD movement module, supporting ONVIF / RTSP protocol
Share to:

52x 5.7-300mm long focal length 1080P HD movement module, supporting ONVIF / RTSP protocol

Brand JieShiAn
Detail

█ Product Image

52x 5.7-300mm -IMGE.jpg

█ Features

* 52x optical zoom, focal length 5.7-300mm

* Automatic ultra-wide dynamic, 0 ~ 120 digital adjustment

* H.265 encoding achieves low bit rate, fast and accurate focusing

* Support 16 times digital zoom, support 2D / 3D digital noise reduction

* 2 million pixels, progressive scan CMOS, maximum resolution 1920 × 1080

* Support strong light suppression, area blocking, defogging, corridor mode, etc.

* Convenient access to dome camera, PTZ, mainstream platform and other equipment

* Supports up to 128G MicroSD card local storage, rich interface, convenient function expansion

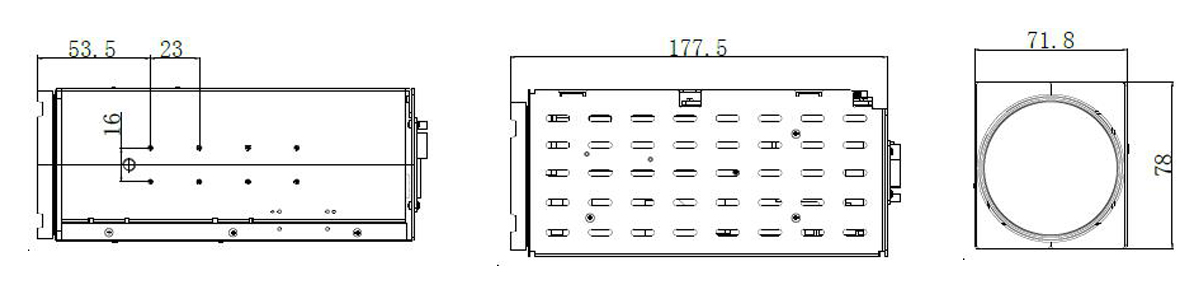

█ Product Size

52x 5.7-300mm -size.jpg

█ Definition of wiring


Optical

Sensor

1/2" Progressive CMOS

Focal Length

5.7-300mm,52X Optical

Aperture Value

F1.4-F4.5

View Angle

Horizontal: 65.3-1.5° (Min.-Max.)

Min. Distance

0.1m-2m (Min.-Max.)

Zoom Speed

8s

D/N Shift

ICR, Auto, Color, White/Black, Timing, Threshold Control, Rotation

Scanning

Progressive Scanning

Parameter

Resolution

50HZ:25fps(1280x720) 60HZ:30fps(1280x720)

50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)

Illumination

0.002Lux @(F1.5,AGC ON)color, 0.0002Lux @(F1.5,AGC ON)B/W

Video Output

Network coding

Image Adjustment

Saturation, Brightness, Contrast, Sharpness, Hue Adjustment

Image Setting

Movement function can be adjusted through client or IE browser

General parameters

Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch mode, Power off Memory

ROI

4 areas

Focus Mode

Auto/Manual/One Time Focus

Exposure Mode

Auto/Aperture priority/Shutter Priority/Manual

Shutter Time

1/25~1/100000

White Balance

Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp

WDR

Super WDR, Auto WDR, 0-120 digital adjustment

DNR

2D / 3D

Digital Zoom

16 X

System Mode

PAL/NSTC

Network

Storage

Support MicroSD storage 128G (recommended to use class10)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, (IPv6 optional)

Compatibility

ONVIF2.4, GB / T28181, active registration, CGI

Protocol

Main stream: 1080P / 720P; Secondary stream: D1 / CIF

Audio Compression

G.711A、G.711U、G.726、AAC

Video Compression

H.265/H.264

General

Heartbeat, Password Protection,   Black/White list

Interface

Interface

36pin FFC (RJ45, RS485, RS233, CVBS, Alarm In/Out, Audio In/Out, USB, Power)

Communication

RS232, RS485, Pelco, VISCA

Others

Working Temp.

-10℃~60℃   Humidity≤95% (non-condensing)

Power

DC12V±10%

Power Cons.

2.5W~4.5W

Dimension

177.5*71.8*78mm   weight:930g


█   Typical application of network video surveillance system

23X Definition of wiring.jpg23X Definition of wiring-2.jpg

█ Typical application of video surveillance system solutions for chain institutions

1-network video surveillance system.jpg

█ Typical application of video surveillance software in system industry projects

2-chain institutions.jpg

█ Integrated networking application with store and forward gateway

3-system industry projects.jpg

█ Integrate networking applications with third-party platforms

4- store and forward gateway.jpg

█ Specifications

5-third-party platforms.jpg5-third-party platforms-2.jpg
