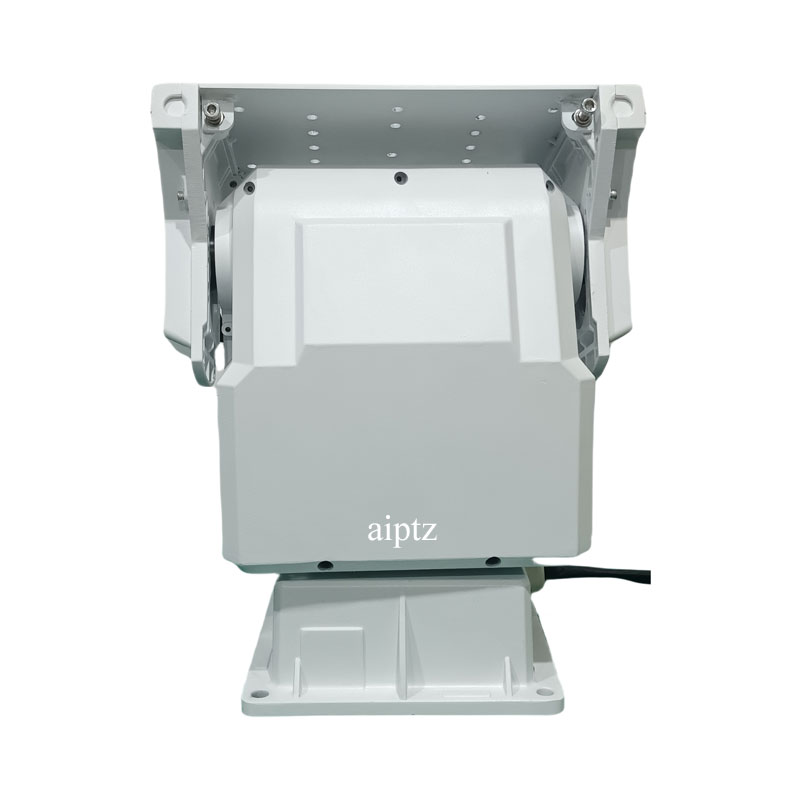

20kg top load industrial pan tilt unit,RS485 Optional network control or remote control version(1)


Net weight：≈17kg
Max load：≤20kg
Delivery cycle：4~8 W/D
Order series：JSA-EFPTZDU6120 Series
Detail





█ Specifications


Model

JSA-EFPTZDU6120   Series

Max. Load

≤20kg

Bearing mode

Top load/(side load compatible)

Driving mode

Worm gear drive, timing belt drive hybrid mode

Pan Angle

0°～360°

Tilt Angle

-45°~45°

Pan Speed

0.1°～30°/S or   0.01°～30°/S

Tilt Speed

0.1°～15°/S or 0.01°～15°/S

Preset Accuracy

±0.1°，[Customizable ±0.01°]

Preset

≤200

Auto cruise

Support

Interfaced
RS485

Protocol

Pelco_D

Baud Rate

9600

Address

1

Bottom cable

DC24V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Top cable

DC24V*1、DC12V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Angle return

Supports angle and azimuth data query and transmission

Remote control

Only the -R model integrates a wireless remote control module,and the remote control distance is ≤100m in an unobstructed environment

Network control

Only the -N model supports up/down, left/right rotation, preset position setting/deletion/calling operations based on B/S mode

Input voltage range

DC24V±10% ；≤100W

Operating temperature

-35℃~+65℃

Working humidity

<90%RH

Lightning protection

Input voltage range supply ≤4000V, communication and video signal ≤2000V

Prevention grade

Standard configurationIP66; Optional Anti-salt spray treatment

Weight

≈17kg

Size

300mm×206mm×365mm


█ Size

pan tilt units


█ Order model


ModelVersion
Load
  /Kg
Angle range
Speed range
Preset
  Accuracy
Angle
  feedbackk
Top outlet
Bottom cable entry
Pan
Tilt
Pan
Tilt
JSA-EFPTZDU6120-SStandard
≤20kg
0°~360°
-45°~45°
0.1°～30°/S
0.1°～15°/S
±0.1°
Query
  feedback

  GND*1
  RS485*1
  DC12V*1/2A
  DC24V*1/2A
  RJ45*1[100Mb]		GND*1
  RS485*1
  DC24V*1
  RJ45*1[100Mb]
JSA-EFPTZDU6120-RRemote control
JSA-EFPTZDU6120-NNetwork control
JSA-EFPTZDU6120-H High-precision
0.01°～30°/S?
0.01°～15°/S
±0.01°
Project customization
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc.
  according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881

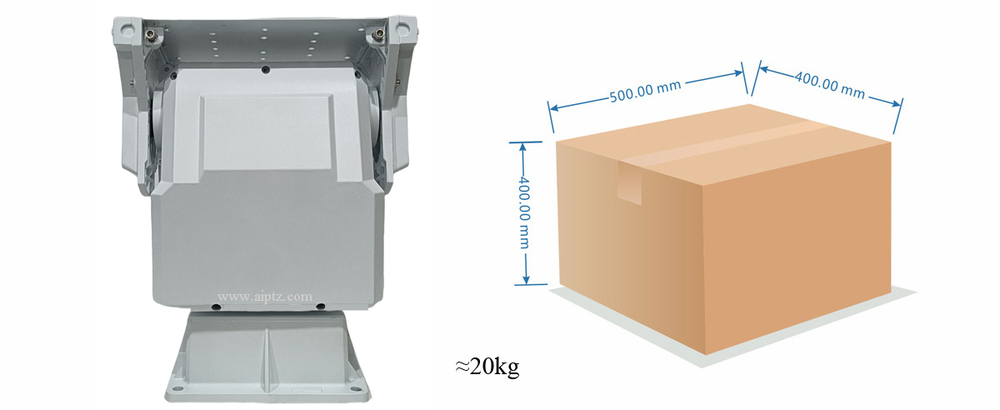

█ Package weight
