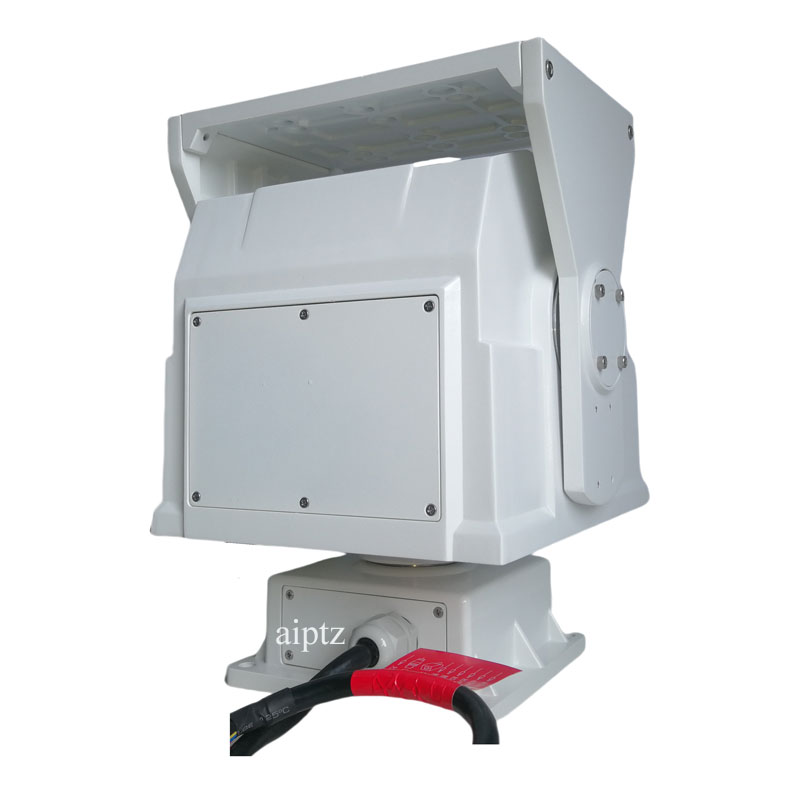

aiptz Du31 series pan and tilt platform,RS485 Optional network BS control or remote control version(1)


Net weight：≈15kg
Max load：≤22kg
Delivery cycle：5~10 W/D
Order series：JSA-EFPTZDU3122  Series
Detail




█ Specifications


Model

JSA-EFPTZDU3122 Series

Max. Load

≤22kg

Bearing mode

Top load/(side load compatible)

Driving mode

Worm gear drive, timing belt drive hybrid mode

Pan Angle

0°～360°

Tilt Angle

-75°~40°

Pan Speed

0.1°～40°/S or 0.01°～40°/S

Tilt Speed

0.1°～20°/S or 0.01°～20°/S

Preset Accuracy

±0.1°，[Customizable ±0.01°]

Preset

≤200

Auto cruise

Support

Interfaced
RS485

Protocol

Pelco_D

Baud Rate

9600

Address

1

Bottom cable

AC24V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Top cable

AC24V*1、DC12V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Angle return

Support Real-time angle and orientation feedback

Input voltage range

-40℃~+70℃

Operating temperature

AC24V±20% 50/60HZ；≤100W

Working humidity

<90%RH

Lightning protection

Input voltage range supply ≤4000V, communication and video signal ≤2000V

Prevention grade

Standard configurationIP66; Optional Anti-salt spray treatment

Weight

≈15kg

Size

227mm×260mm×333mm(L*W*H)


█ Size

pan tilt systems

█ Order model


ModelVersion
Load
/Kg
Angle range
Speed range
Preset Accuracy
Angle feedback
Top outlet
Bottom cable entry
Pan
Tilt
Pan
Tilt
JSA-EFPTZDU3122-SStandard
≤22kg
0°~360°

-75°~40°
0.1°～40°/S
0.1°～20°/S
±0.1°
Query
feedback

GND*1
RS485*1
DC12V*1/2A
AC24V*1/2A
RJ45*1[100Mb]		GND*1
RS485*1
AC24V*1
RJ45*1[100Mb]
JSA-EFPTZDU3122-RRemote control
JSA-EFPTZDU3122-NNetwork control
JSA-EFPTZDU3122-H High-precision
0.01°～40°/S?
0.01°～20°/S
±0.01°
Project customization
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc.
according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881




█ Package weight

pan tilt motorized head
