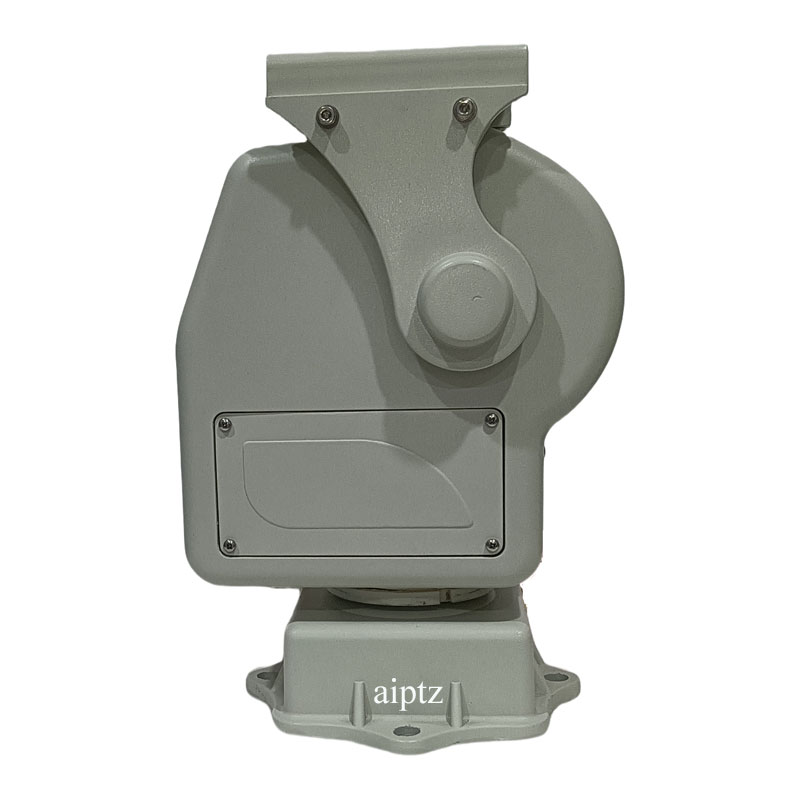

5kg Light Load Pan Tilt,RS485 comm support Pelco optional network control or remote control model(1)


Net weight：≈4.8kg
Max load：≤5kg
Delivery cycle：4~8 W/D
Order series：JSA-EFPTZDU30L5  Series
Detail




█ Specifications


Model

JSA-EFPTZDU30L5

Max   Load

≤5Kg

Bearing mode

Top load/(side load compatible)

Driving mode

Gear drive

Pan Angle

0°～360°

Tilt Angle

-85°～+60°

Pan Speed

1°～9°/S，Optional 0.1°～9°/S

Tilt Speed

1°～5°/S，Optional 0.1°～5°/S

Preset Accuracy

± 1° / optional ± 0.1°

Preset

≤80

Auto cruise

Support

Interfaced
RS485

Protocol

Pelco_D

Baud Rate

9600

Address

1

Bottom cable

DC12V*1、RS485*1、RJ45*1、GND*1

Top cable

DC12V*1、RS485*1、RJ45*1、GND*1

Angle return

Not support

Remote control

Only the -R   model integrates a wireless remote control module,and the remote control distance is ≤100m in an unobstructed environment

Network control

Only the -N model supports up/down, left/right rotation, preset position setting/deletion/calling operations based on B/S mode

Input voltage range

DC12V；≤20W

Operating temperature

-30℃~+60℃

Working humidity

<90%RH

Lightning protection

Input voltage range supply ≤4000V, communication and video signal ≤2000V

Prevention grade

IP66

Weight

≈4.8kg

Size

183mm(L)×167mm(W)×285mm(H)


█ Size


█ Order model


ModelVersion
Load
/Kg
Angle range
Speed range
Preset
Accuracy
Angle
feedback
Top outlet
Bottom cable entry
Pan
Tilt
Pan
Tilt
JSA-EFPTZDU30L5-SStandard
≤5kg
0°~360°

-85°~60°
1°～9°/S
1°～5°/S
±1°
   Optional


 GND*1
RS485*1
DC12V*1/2A
RJ45*1[100Mb]		GND*1
 RS485*1
 DC12V*1
 RJ45*1[100Mb]
JSA-EFPTZDU30L5-RRemote control
JSA-EFPTZDU30L5-NNetwork control
JSA-EFPTZDU30L5H-SStandard
≤5kg
0°~360°
-85°~60°
0.1°～9°/S
0.1°～5°/S
±0.1°
   Optional
GND*1
 RS485*1
 DC12V*1/2A
 RJ45*1[100Mb]		GND*1
 RS485*1
 DC12V*1
 RJ45*1[100Mb]
JSA-EFPTZDU30L5H-RRemote control
JSA-EFPTZDU30L5H-NNetwork control
Project customization
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc.
 according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881

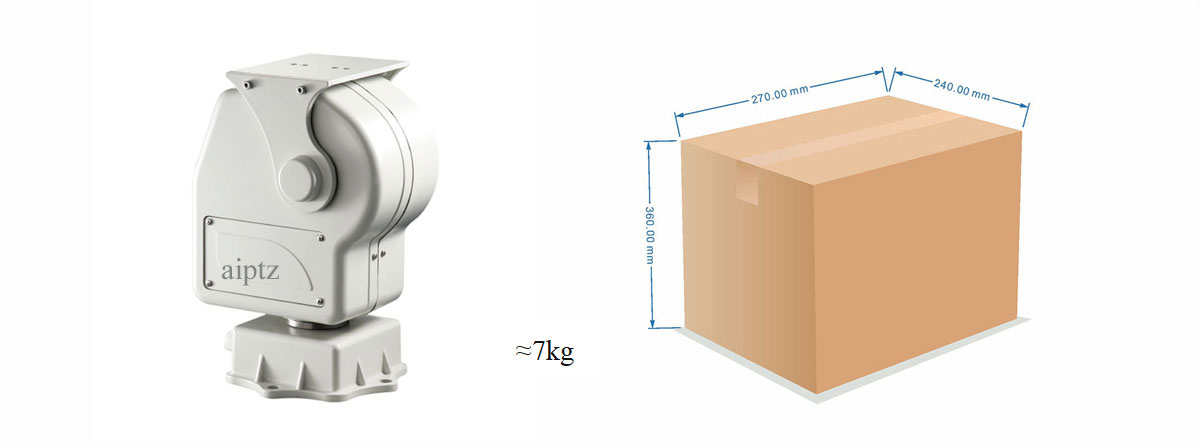

█ Package weight
